マクロセル

幅広いニーズに対応する多彩なマクロセルをラインアップし、お客さまの回路にさらなる可能性と独自性の価値を加えます。

マクロセル ラインアップ

1.E/A Flash

Status MP MP
シリーズ名 S1X50000 S1X60000 / S1K60000
Operating Voltage 2.7V to 3.6V 2.3V to 2.7V
Erase/Program Interface Write Pulse Input Command I/F Command I/F
Memory Size 64k,128k, 256k,512k,
1M,2M bit
256k,512k,
1M,2M, 4M bit
256k,512k,1M,
2M, 4M bit
I/O 8,16 bit 16 bit
Sector Size 1kbyte/sector 4kbyte/sector 4kbyte/sector
Chip Erase Time (Typ.) 100ms 70ms 70ms
Sector Erase Time (Typ.) 20ms 18ms 18ms
Byte Access Time (Typ.) 15µs 14µs 14µs
Read Access Time (Max.) 50ns 50ns
Operating Current (Max.) 20mA 20mA
Standby Current (Max.) 10µA 10µA
Endurance Time (Max.) 1000 cycle 10000 cycle 10000 cycle
Data Retention (Min.) 10years 10years
Temperature Range 0 to 70 ℃ 0 to 70 ℃
Layer 3 3

2.E/A PLL

Status MP MP MP MP
Series S1X5V000 S1X50000 S1X60000 / S1K60000 S1X80000 / S1K80000
Macro Type High Speed A35M Low Speed A35K High Speed A35K Low Speed A25K High Speed A25M High Speed
A15M
Operation Voltage 5.0V 3.0 to 3.6V 2.3 to 2.7V 1.65V to 1.95V
Input Frequency 5MHz to 40MHz 32kHz 5MHz to 40MHz 32kHz 5MHz to 150MHz 5MHz to 150MHz
Multiplication Ratio x2 to x26 x610 to x4096 x2 to x26 Max. 16000 x1 to x16 x1 to x16
Output Frequency 20MHz to 135MHz 20MHz to 135MHz 20MHz to 200MHz 20MHz to 200MHz
Period Jitter ±2% ±3% ±2% ±2% ±200ps POUT<=100MHz±2%
POUT>100MHz±200ps
Duty 50%±10% 50%±10% 50%±5% 50%±5%
Lock Up Time 100µs 100msec 100µs 100msec 100µs 200µs
Low Pass Filter On Chip On Chip On Chip On Chip
Temperature Range -40 to 110℃ -40 to 85℃ -40 to 85℃ -40 to 85℃
Layer 3 3 3 3

3.SRAM

Series S1X5V000
Macro Type Standard
Port 1-port 2-port (1R+1W)
Memory Size/Module 128 to 16Kbit
Data Bus Width (bit) x1 to x32 1bit step
Operating Voltage 3.3V, 5.0V
Operation Frequency (Max.) 50MHz/5.0V
Layer 3
Status MP
Series S1X50000
Macro Type Normal High-Density High Speed
Port 1-port Dual port (2R+2W) 1-port 1-port 2-port (1R+1W) Dual port (2R+2W)
Memory Size/Module 128 to 64Kbit 1K to 64Kbit 32K to 512Kbit 32K to 72Kbit
Data Bus Width (bit) x1 to x32 1bit step x8, x16, x24, x32 x8, x16, x32 x1 to x144 1bit step
Operating Voltage 2.0V, 2.5V, 3.0V, 3.3V 2.0V, 3.0V, 3.3V 3.3V
Operation Frequency (Max.) 71MHz 76MHz 125MHz 110MHz
Layer 3 3 3
Status MP
Series S1X60000 / S1K60000
Macro Type Normal High-Density High Speed
Port 1-port Dual port (2R+2W) 1-port 1-port 2-port (1R+1W)
Memory Size/Module 128 to 64Kbit 1K to 64Kbit 32K to 512Kbit 128 to 64Kbit
Data Bus Width (bit) x1 to x32 1bit step x8, x16, x24, x32 x8, x16, x32 x4 to x64 1bit step
Operating Voltage 2.0V, 2.5V 2.5V
Operation Frequency (Max.) 125MHz 119MHz 71MHz 179MHz
Layer 3 3 3
Series S1X80000 / S1K80000
Macro Type Standard Large Scale
Port 1-port 2-port (1R+1W) Dual port (2R+2W) 1-port
Memory Size/Module 128 to 64Kbit 64 to 16Kbit 1K to 32Kbit 128K to 1Mbit
Data Bus Width (bit) x1 to x32 1bit step x1 to x32 1bit step x8, x16, x24, x32 x8, x16, x32
Operating Voltage 1.8V
Operation Frequency (Max.) 125MHz 119MHz 116MHz 74MHz
Layer 3 4 3 3

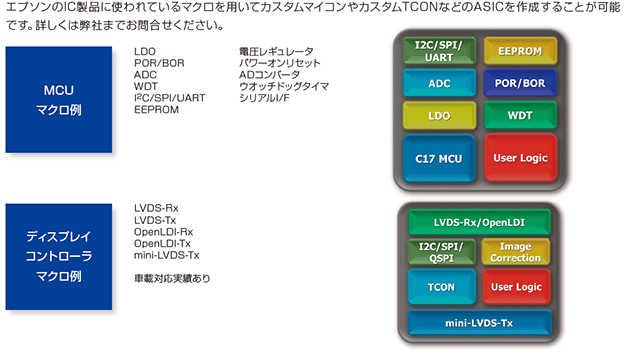

他にも、マクロセルをラインアップしております。ASICシリーズによって、マクロ対応状況が異なっている場合があります。詳細仕様、またASIC開発・検討時は弊社営業までお問い合わせください。
